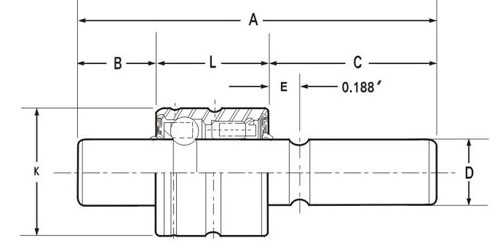

PEAK NO NSK NO FAG NO B C D K L D1 S1 D2 S2
WIR163067   WNS2299-2 2.99 0.64 1.29 0.6267 1.18 1.06     0.4739 1.21
WIR163083   WNS2325-1 3.25 0.72 1.47 0.6267 1.18 1.06
WIR122485 664101 WNS2332 3.33 0.81 1.46 0.4733 0.94 1.06
WIR163086   WNS2337-1 3.38 0.57 1.63 0.6267 1.18 1.18     0.4739 1.55
WIR163087A   WNS2340 3.41 0.53 1.34 0.6267 1.18 1.53     0.4739 1.25
WIR153087   WNS2344-2 3.44 0.65 1.38 0.5906 1.18 1.42
WIR163087   WNS2344-6 3.44 0.53 1.50 0.6267 1.18 1.42     0.4739 1.35
WIR163088   WNS2348-5 3.48 0.76 1.66 0.6267 1.18 1.06     0.4739 1.56
WIR163090   WNS2353 3.53 0.65 1.64 0.6267 1.18 1.24     0.4739 1.56
WIR153090   WNS2354-2 3.54 0.71 1.30 0.5906 1.18 1.53     0.4739 1.22
WIR163091   WNS2360-1 3.60 0.52 1.35 0.6267 1.18 1.73     0.4739 1.25
WIR1530104   WNS2411 4.11 1.03 1.56 0.5906 1.18 1.53     0.4739 1.44
WIR1530106   WNS2417 4.17 1.09 1.56 0.5906 1.18 1.53     0.4739 1.44
WIR1630108   WNS2426 4.26 0.73 2.01 0.6267 1.18 1.53     0.4739 1.93
WIR1530109   WNS2430-2 4.30 0.70 1.56 0.5906 1.18 2.05     0.4739
WIR1530119   WNS2466 4.67 1.06 1.56 0.5906 1.18 2.05     0.4739 1.44
WIR2036122   WNS2482 4.82 1.14 1.63 0.7874 1.42 2.05 0.5906 1.13 0.4739 1.44
WIR1530125   WNS2493 4.93 0.70 2.19 0.5906 1.18 2.05
WIR2555127   WNS2500 5.00 0.98 1.65 1.0000 2.17 2.36     0.6267 1.61
WIR2555127A   WNS2500-1 5.00 0.98 1.65 1.0000 2.17 2.36     0.5906 1.61
WIR2036131   WNS2514 5.15 1.30 1.80 0.7874 1.42 2.05 0.5906 1.29 0.5906 1.68
WIR2547136   WNS2535-1 5.36 0.93 2.31 1.0000 1.88 2.13 0.7465 0.82 0.6267 2.11
WIR255157   WNS2616-6 6.17 1.39 2.41 1.0000 2.17 2.36 0.7465 0.50 0.6267 2.28
WIR163076   WNS6299-2 2.99 0.64 1.29 0.6267 1.18 1.06     0.4759 1.21
