BALL-BALL TYPE:                      W series             W--S series                WS series             WK series

BALL-ROLLER TYPE:              WN series           WKN--series           WNS series       With special features
PROFILE

PRODUCTS
Ball bearings
Insert bearings
One-way bearings
Water pump bearings
Tapered roller bearings
Automotive air-conditioning compressor bearings
Cylindrical roller bearings
Clutch release bearings
Wheel hub bearings
Thrust bearings,washers
Miniature bearings
Special bearings
Bearing rings

ENGINEERING INFORMATION
Materials
Clearance
Tolerance
Vibration

CONTACT

　

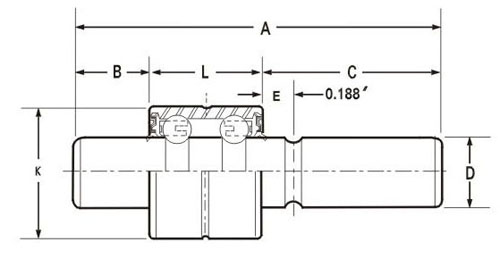

PEAK NO NSK NO FAG NO A  B C D K L D1 S1 D2 S2
WIB163067   WS2262 2.62 0.33 1.23 0.6267 1.18 1.06 0.5133 0.26 0.4739 1.19
WIB163066   WS2263 2.59 0.98 0.08 0.6267 1.18 1.53   　 　 　
WIB163071   WS2279 2.80 0.37 1.36 0.6267 1.18 1.06   　 0.4739 1.28
WIB122478   WS2307 3.07 0.53 1.48 0.4739 0.94 1.06   　 　 　
WIB163079   WS2311 3.11 0.54 1.52 0.6267 1.18 1.06   　 　 　
WIB132480   WS2315-1 3.15 0.56 1.28 0.5000 0.94 1.31   　 　 　
WIB163080   WS2315-2 3.15 0.62 1.47 0.6267 1.18 1.06   　 　 　
WIB122483   WS2325 3.26 0.63 1.31 0.4739 0.94 1.31   　 　 　
WIB163085 885342+ WS2332-1 3.33 0.68 1.59 0.6267 1.18 1.06   　 　 　
WIB163085A   WS2333 3.33 0.68 1.59 0.6267 1.18 1.06   　 　 1.49
WIB163085B   WS2334-6 3.35 0.67 1.61 0.6267 1.18 1.06 0.5906 0.56 0.4739 1.38
WIB163087   WS2340-2 3.41 0.53 1.34 0.6267 1.18 1.53   　 0.4739 1.25
WIB153087   WS2344-1 3.44 0.53 1.50 0.5906 1.18 1.42   　 　 　
WIB153087A   WS2344-4 3.44 0.53 1.50 0.5906 1.18 1.42   　 0.4739 1.35
WIB163087A   WS2344-6 3.44 0.53 1.50 0.6267 1.18 1.42   　 0.4739 1.35
WIB163088   WS2345 3.46 0.70 1.69 0.6267 1.18 1.06   　 　 　
WIB163089   WS2349 3.49 0.76 1.32 0.6267 1.18 1.42   　 　 　
WIB163089A   WS2351 3.51 0.82 1.63 0.6267 1.18 1.06   　 0.4739 1.50
WIB173691   WS2357-2 3.57 0.55 1.49 0.6693 1.42 1.53   　 0.5906 1.34
WIB163091   WS2358-1 3.58 0.67 1.50 0.6267 1.18 1.41 0.5906 0.57 0.4739 1.35
WIB122692 BWF26-36A WS2362 3.62 0.67 1.38 0.4739 1.02 1.57   　 　 　
WIB122694 BWF26-14RUJ WS2372 3.72 0.85 1.34 0.4739 1.02 1.53   　 　 　
WIB203696   WS2377-2 3.78 0.67 1.65 0.7874 1.42 1.46 0.6267 0.67 0.6267 1.64
WIB153098   WS2383 3.84 0.90 1.41 0.5906 1.18 1.53   　 　 　
WIB163098   WS2385-7 3.86 0.67 1.66 0.6267 1.18 1.53   　 　 　
