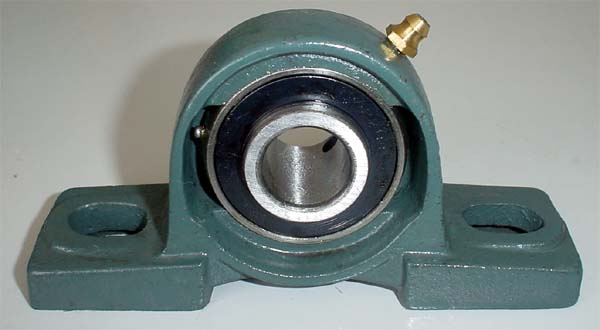

  INSERT BEARINGS   / PILLOW BLOCKS
          *.UC200 Series *.SA200 Series
          *.SB200 Series *.UCF200 Series
          *.UCFL200 series *.CSA200 series
          *.CSB200 series *.UCPA series


Bearing No.


Shaft Dia

Dimensions (mm)

Basic dynamic
Load ratings
(KN)

Basic static Load ratings
(KN)

Weight
(kg)

d

D

Bi Be n m G

Ds

(in)

(mm)

(mm)

(in.UNF)

UC201



UC202



UC203

17

40

27.4

14

11.5

15.9

4.5

M5X0.8



7.36

4.79

0.13

UC204
          204-12

3/4

20

47

31

17

12.3

18.7

5

M6X1

1/4-28

9.88

6.65

0.17
0.18

UC205
          205-14
          205-15
          205-16

7/8
15/ 16
1

25

52


34.1


17


14.3


19.8


5


M6X1


1/4-28


10.78


9.93


0.19
0.22
0.20
0.19

UC206
          206-18
         206-19
         206-20

1-1/8
1-3/16
1-1/4

30

62


38.1


19


15.9


22.2


5


M6X1


1/4-28


14.97


11.31


0.31
0.34
0.32
0.30

UC207
          207-20
         207-22
         207-23

1-1/4
1-3/8
1-7/16

35

72


42.9


20


17.5


25.4


7


M8X1


5/16-24


19.75


15.30


0.46
0.52
0.48
0.46

UC208
          208-24
         208-25

1-1/4
1-9/16

40

80

49.2

21

19.0

30.2

8

M8X11

5/16-24

25.09

19.84

0.63
0.68
0.64

UC209
          209-26
          209-27
          209-28

1-5/8
1-11/16
1-3/4

45

85


49.2


22


19.0


30.2


8


M8X1


5/16-24


25.14


20.46


0.68
0.78
0.74
0.70

UC210
           210-30
           210-31

1-7/8
1-15/16

50

90

51.6

22

19.0

32.6

10

M10X1.25

3/8-24

26.98

23.18

0.78
0.85
0.80
