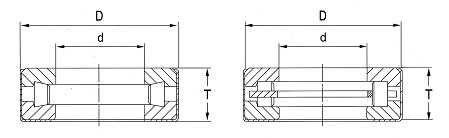

| Part No |
Dimensions(D
x d x T) (mm) |
Part No |
Dimensions(D
x d x T) (mm) |
| T88(W) |
48.021X22.479X15.088) |
T149 |
65.883X38.303X19.431 |
| T101 |
50.8X25.654X15.875 |
T202 |
93.269X51.054X26.975 |
| T126 |
55.560X32.004X15.875 |
T201 |
93.269X51.054X26.187 |
| T163 |
72.639X41.53X21.433 |
T208 |
93.269X52.629X26.975 |
| T251 |
111.125X63.754X26.988 |
T209 |
93.269X52.629X26.187 |
| T252 |
111.125X63.765X25.796 |
T138 |
66.675X35.179X19.446 |
| T301 |
133.35X76.454X33.925 |
T144 |
66.675X36.754X19.446 |
| T302 |
133.35X76.454X34.925 |
T139 |
58.738X35.179X15.875 |
| T135 |
76.2X34.925X15.875 |
T151 |
72.619X38.354X21.433 |
| T581 |
177.8X147.638X17.463 |
T152 |
72.619X38.354X20.635 |
| T77 |
41.275X19.304X12.7 |
T188 |
82.956X47.879X23.812 |
| T92 |
44.958X23.825X13.477 |
T189 |
82.956X47.879X23.020 |
| T119 |
55.562X30.416X15.875 |
T127 |
66.675X32.004X19.446 |
| T199 |
74.61X51.05X15.875 |
T173 |
55.562X28.829X15.875 |
| T82 |
41.275X20.879X13.487 |
T177 |
73X45X20 |
| T94 |
48.021X24.054X15.088 |
T176 |
82.956X44.704X23.812 |
| T107 |
50.8X27.299X15.875 |
T110 |
53.19X28.83X15.875 |
|
|
